| Chassis |
| Form Factor |
Blade |
| Manufacturer Form Factor |
Blade |
| Hot-Swap Bays Qty |
4 |
| Server Storage Bays |
Hot-swap |
| Server Swappable Drive Interface |
SATA/SAS |
| Server Swappable Drive Form Factor |
2.5 |
| Server Swappable Drive Form Factor (metric) |
6.4 cm |
| Display |
| Type |
None. |
| Expansion Bays |
| Form Factor (metric) |
6.4 cm SFF |
| Type |
Hot-swap |
| Expansion Slots |
| Type |
PCIe 3.0 x16 |
| Hard Drive |
| Type |
No HDD |
| Hard Drive (2nd) |
| Type |
None |
| Hard Drive (3rd) |
| Type |
None |
| Hard Drive (4th) |
| Type |
None |
| Optical Storage |
| Type |
None |
| Drive Type |
No optical drive |
| RAM Supported |
| Max Size |
512 GB |
| Type |
PC4-19200 |
| Registered or Buffered |
Registered |
| Bay Provided |
| Form Factor |
2.5 SFF |
| Total Qty |
4 |
| Free Qty |
4 |
| Environmental Parameters |
| Min Operating Temperature |
50 °F |
| Max Operating Temperature |
95 °F |
| Humidity Range Operating |
10 – 90% (non-condensing) |
| Header |
| Compatibility |
PC |
| Manufacturer |
HP CTO Server Avnet |
| Packaged Quantity |
1 |
| Product Line |

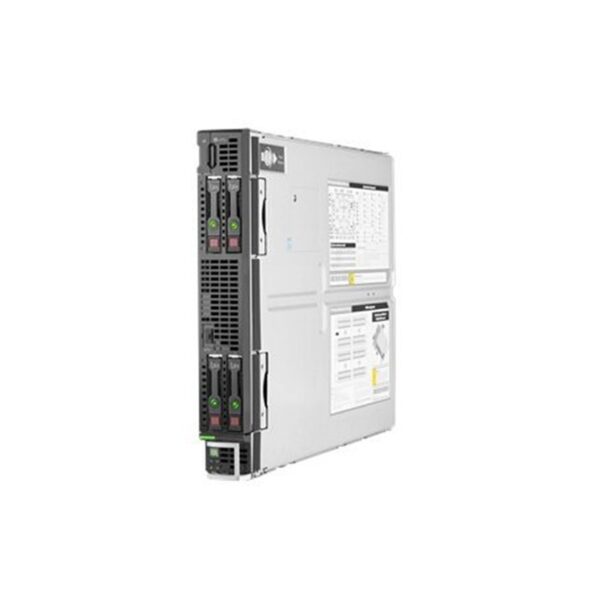

HPE ProLiant |
| Model |
BL660c Gen9 |
| Brand |
HPE |
| Interface Provided |
| Qty |
2 |
| Type |
USB 3.0 |
| Location |
2 internal |
| Mainboard |
| Processor Socket |
LGA2011 Socket |
| Miscellaneous |
| Compliant Standards |
ACPI 2.0, AES, ASHRAE, FIPS 140-2 Level 2, WEEE |
| Pricing Type |
CTO |
| Color Category |
Black |
| Networking |
| Remote Management Protocol |
IPMI 2.0, SNMP |
| Features |
PXE support |
| Remote Management Controller |
Integrated Lights-Out 4 |
| Optical Storage (2nd) |
| Type |
None |
| Drive Type |
No optical drive |
| Printer |
| Type |
None |
| Processor |
| Type |
No CPU |
| Max Supported Qty |
4 |
| Upgradability |
Upgradable |
| Server Scalability |
4-way |
| Service |
| Support Details Type |
Limited warranty |
| Support Details Service Included |
Parts and labor |
| Support Details Location |
On-site |
| Support Details Full Contract Period |
3 years |
| Slot Provided |
| Total Qty |
4 |
| Free Qty |
4 |
| Storage Controller |
| Type |
None |
| Storage Controller (2nd) |
| Type |
None |
| Storage Removable |
| Type |
None |
| System |
| Type |
Server |
| OS Certified |
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server |
| Hard Drive Capacity |
0 GB |
| Video Output |
| Graphics Processor Vendor |
Matrox G200eH |
| Graphics Processor Series |
Matrox G200 |
| Dimensions & Weight |
| Width |
2.2 in |
| Depth |
20.3 in |
| Height |
14.4 in |
| RAM |
| Installed Size |
0 GB |
| Technology |
DDR4 SDRAM |
| Data Integrity Check |
Advanced ECC |
| Form Factor |
DIMM 288-pin |
| Features |
HP SmartMemory, Online Spare Memory |
| Empty Slots |
32 |
| Slots Qty |
32 |
| Service & Support |
| Type |
3 years warranty |
| On-Site Warranty |
On-site |
