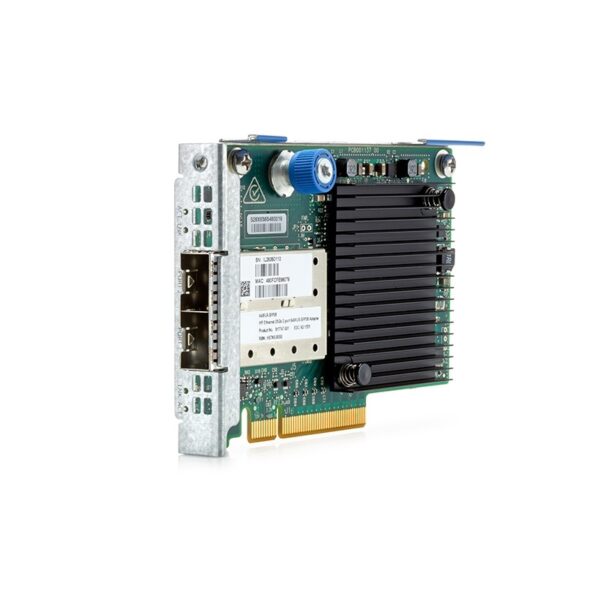

817749-B21

Capacity

Type

Jumbo frame size

Value

Up to 9.2 KB

Environmental Parameters

Min Operating Temperature

41 °F

Max Operating Temperature

140 °F

Humidity Range Operating

8 – 90%

Header

Compatibility

PC, Unix

Manufacturer

Hewlett-Packard

Packaged Quantity

1

Product Line

HPE

Model

640FLR-SFP28

Brand

HPE

Interface Provided

Qty

2

Connector Type

SFP28

Type

25Gb Ethernet

Miscellaneous

Compliant Standards

ACA, BSMI Class A, CISPR 22 Class A, cTUVus, EN 55022 Class A, EN 60950-1, EN55024,

FCC Class A certified, ICES-003, RoHS 6/6, VCCI Class A, WHQL

Networking

Type

Network adapter

Form Factor

Plug-in card

Connectivity Technology

Wired

Data Transfer Rate

25 Gbps

Data Link Protocol

10 Gigabit Ethernet, 25 Gigabit Ethernet

Remote Management Protocol

SNMP

Compliant Standards

IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz,

IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x

Status Indicators

Link/activity

Ports Qty

2

Features

Extended Message-Signaled Interrupts (MSI-X), Full duplex mode, IPv4 support, IPv6 support,

Jumbo Frames support, LACP support, Large Send Offload (LSO), LLDP support,

Network Virtualization using Generic Routing Encapsulation (NVGRE), PXE support,

QoS tagging, Quality of Service (QoS), RDMA over Converged Ethernet (RoCE),

RDMA over Converged Ethernet (RoCE) v2, Receive Side Scaling (RSS), T

CP Segmentation Offload (TSO), TCP/IP checksum offload, TCP/IP offloading, UDP/IP offloading,

UEFI support, Virtual Extensible LAN (VXLAN), VLAN support

Interface Type

FlexibleLOM

PCI Specification Revision

PCIe 3.0

Performance

Type

Bidirectional throughput

Value

100 Gbps

Ports

Qty

2

Type

25 Gigabit Ethernet

Power Device

Power Consumption Operational

9.7 Watt

Processor

Type

Mellanox ConnectX-4 Lx

Installed Qty

1

Manufacturer

Mellanox Technologies

Service

Support Details Type

Limited warranty

Support Details Full Contract Period

1 year

Service & Support

Type

1 year warranty

System Requirements

Min Operating System

Citrix XenServer 6.5, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2,

Oracle Solaris 11.1, Red Hat Enterprise Linux 6.6, Red Hat Enterprise Linux 6.7,

Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 7.1, Red Hat Enterprise Linux 7.2,

SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 12, Ubuntu 14.04,

VMware ESXi 5.5, VMware ESXi 6.0
