| Hard Drive (4th) |
| Type |
None |
| Processor |
| Type |
No CPU |
| Max Supported Qty |
2 |
| Upgradability |
Upgradable |
| Server Scalability |
2-way |
| Audio Input |
| Type |
None |
| Display |
| Type |
None. |
| Environmental Parameters |
| Sound Emission |
51 dBA |
| Min Operating Temperature |
50 °F |
| Max Operating Temperature |
95 °F |
| Humidity Range Operating |
8 – 90% (non-condensing) |
| Header |
| Compatibility |
PC |
| Manufacturer |
HP CTO Server Avnet |
| Packaged Quantity |
1 |
| Product Line |
HPE ProLiant |
| Model |

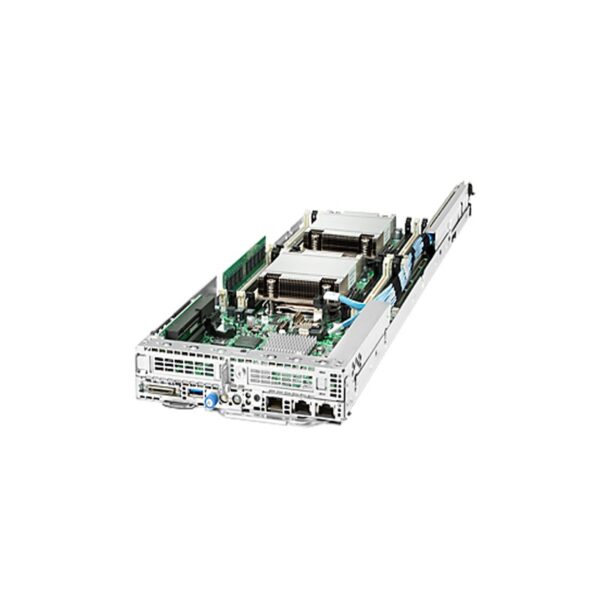

XL170r Gen9 |
| Brand |
HPE |
| Interface Provided |
| Qty |
2 |
| Type |
HP iLO |
| Location |
1 internal |
| Miscellaneous |
| Compliant Standards |
ACPI 2.0b, CISPR 22, CNS 13438, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022, EN55024, FCC CFR47 Part 15, FCC Class A certified, GB 9254, ICES-003, IEC 60950-1, WEEE |
| Features |
Administrator password, Keyboard password, Power-on password, Serial port I/O control, UEFI BIOS |
| Pricing Type |
CTO |
| Color Category |
Silver |
| Power Device |
| Type |
None |
| Printer |
| Type |
None |
| RAM |
| Installed Size |
0 GB |
| Max Supported Size |
512 GB |
| Technology |
DDR4 SDRAM |
| Form Factor |
DIMM 288-pin |
| Features |
HP SmartMemory, Online Spare Memory |
| Empty Slots |
16 |
| Slots Qty |
16 |
| Service |
| Support Details Type |
Limited warranty |
| Support Details Service Included |
Parts and labor |
| Support Details Location |
On-site |
| Support Details Full Contract Period |
1 year |
| Slot Provided |
| Total Qty |
2 |
| Free Qty |
2 |
| Optical Storage (2nd) |
| Type |
None |
| Drive Type |
No optical drive |
| Storage Controller |
| Type |
None |
| Storage Controller (2nd) |
| Type |
None |
| Storage Removable |
| Type |
None |
| System |
| Type |
Server |
| Hard Drive Capacity |
0 GB |
| Video Output |
| Form Factor |
Integrated |
| Graphics Processor Vendor |
Matrox G200 |
| Graphics Processor Series |
Matrox G200 |
| Dimensions & Weight |
| Width |
7.1 in |
| Depth |
25.3 in |
| Height |
1.6 in |
| Weight |
3.81 lbs |
| Service & Support |
| Type |
1 year warranty |
| On-Site Warranty |
On-site |
| Audio Output Details |
| Speaker Type |
None |
| Chassis |
| Form Factor |
Blade |
| Manufacturer Form Factor |
Blade |
| Expansion Slots |
| Type |
microSD Card (internal) |
| Hard Drive |
| Type |
No HDD |
| Hard Drive (2nd) |
| Type |
None |
| Hard Drive (3rd) |
| Type |
None |
| Optical Storage |
| Type |
None |
| Drive Type |
No optical drive |
| RAM Supported |
| Max Size |
512 GB |
| Registered or Buffered |
Load-Reduced |
| Type |
PC4-17000 |
