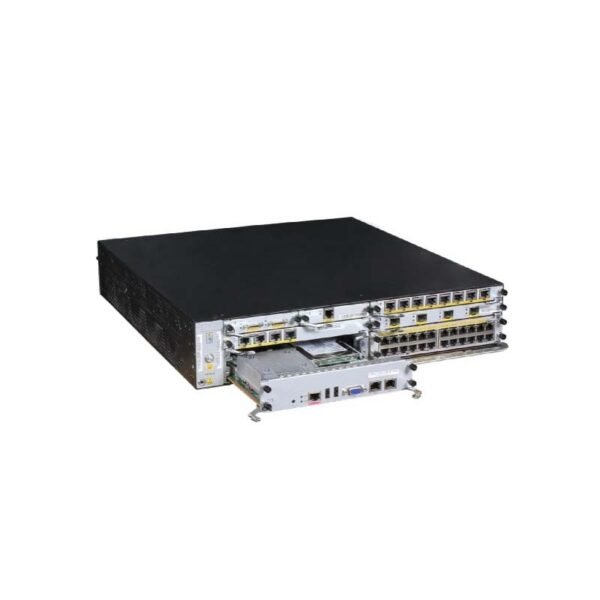

AR2240C-S

AR2204C-S Specification

WAN Speed with Services

1 Gbit/s

Firewall Performance (large packets)

6 Gbit/s

Number of recommended users

500

Fixed WAN Ports

4 x GE + 4 x GE SFP + 2 x GE Combo

SIC Slots

4

WSIC Slots (default/max**)

2/4

XSIC Slots (default/max**)

2/4

EXSIC Slot (shared with XSIC slots)

1

DSP Slots

0

USB 2.0 Ports

1

Mini-USB Ports

1

Console Port

1

Memory

2 GB

Flash
(default/max**)

2 GB/8 GB

Maximum Power

350W (Single Power Module)

700W (Dual Power Module)

Redundant Power Supply

Internal: AC, DC

AC Power

100V to 240V

Frequency

50 Hz/60 Hz

DC Power

–

Dimensions (height x width x depth)

88.1 mm x 442 mm x 470 mm

Weight

4.95 kg (without power module and interface card)

Ambient Temperature

0°C to 45°C

Relative Humidity

5% to 95% (non-condensing)
