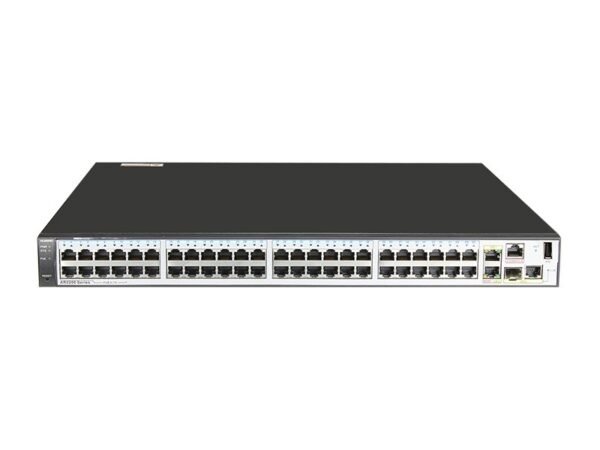

AR2204-51GE-P

AR2204-51GE-P Specification

WAN Speed with Services***

200 Mbit/s

Firewall Performance (large packets)

1.2 Gbit/s

Device Switching Capacity

30 Gbit/s

Number of recommended users

150

Fixed WAN Ports

3 x GE (1 x combo port)

Fixed LAN Ports

48 x GE

SIC Slots

4

WSIC Slots (default/max**)

0

XSIC Slots (default/max**)

0

USB 2.0 Ports

1

Mini-USB Ports

–

Console Port

1

Memory

512 MB

Flash (default/max**)

512 MB

Maximum Power

60W

Redundant Power Supply

–

AC Power

100V to 240V

Frequency

50 Hz/60 Hz

DC Power

–

Dimensions (H x W x D)

44.5 mm x 442 mm x 420 mm

Weight

4.95 kg (without power module and interface card)

Ambient Temperature

0°C to 45°C

Relative Humidity

5% to 95% (non-condensing)

Basic Features

DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, and Subinterface management

3G

3G Interface card (WCDMA)

LTE

LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s)

WLAN (AC)

AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP

IPv4 Unicast Routing

Routing policy, static route, RIP, OSPF, IS-IS, and BGP

IPv6 Unicast Routing

Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+

Multicast

IGMPv1/v2/v3, IGMP Snooping v1/v2/v3, PIM SM, PIM DM, and MSDP

MPLS

LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE聽FRR

VPN

IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN

QoS

DiffServ mode, MPLS QoS, priority mapping, traffic policing with Committed Access Rate (CAR), traffic shaping, congestion avoidance (based on IP precedent LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR

(interface/DSCP-based WRED), congestion management (LAN interface: SP, WRR, SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, FR QoS, Smart Application Control (SAC), and Hard QoS (SRU80 Main Boards support)

Security

ACL, firewall, 802.1x authentication, MAC address authentication, Web Authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP Source Guard, DHCP snooping, CPCAR, blacklist, and IP source tracing

Management and Maintenance

Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, Auto-Config, deployment using USB disk, and CLI
