VMH-Host Series
6/2 | 9/3 | 11/5 | 16/10 Input/Output Card Slots – Integrated Splicing Matrix Processor

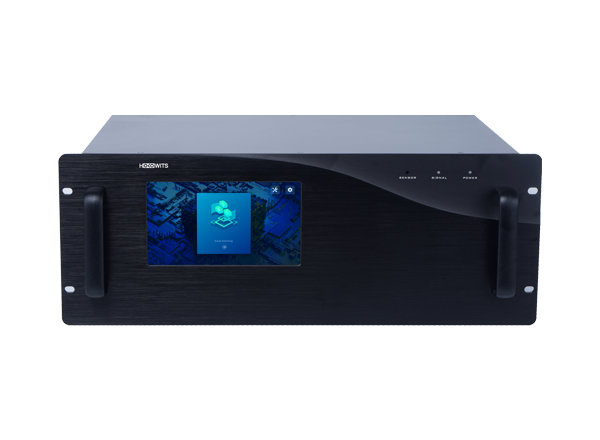

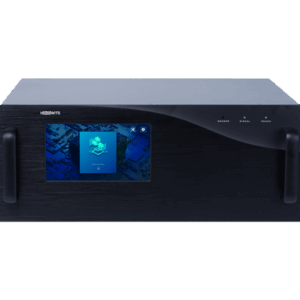

- 【VMH-0602】 6 Input Card, 2 Output Card FPGA-based Integrated Splicing Matrix Processor
- 【VMH-0903】 9 Input Card, 3 Output Card FPGA-based Integrated Splicing Matrix Processor
- 【VMH-1105】 11 Input Card, 5 Output Card FPGA-based Integrated Splicing Matrix Processor
- 【VMH-1610】 16 Input Card, 10 Output Card FPGA-based Integrated Splicing Matrix Processor
- The splicing matrix all-in-one machine, with FPGA and plug-in card design, offers flexible interfaces, high reliability, and integrates audio/video control and output customization. It’s used in command centers and various industries like government, military, and transportation.
- Description
Description
Technical Spec
| Power button | 1 |
| Input card slot | 6 | 9 | 11 | 16 |
| Output card slot | 2 | 3 | 5 | 0 |
| Preview card Slot | 1 |
| Review card slot | 1 |
| Control card slot | 1 | 2 | 2 | 2 |
| Touchscreen | 1 |
| Input maximum resolution | 4096×2160@60Hz |
| Output maximum resolution | 4096×2160@60Hz |
| Technical architecture | Centralized, private protocol |
| Power supply | AC 220V |
| Rated power consumption | 250W | 350W | 450W | 650W |
| Dimensions (L*W*H) | 482.6mm*315mm*177mm | 482.6mm*315mm*221.5mm | 482.6mm × 315mm × 265.9mm | 482.6mm*315mm*354.8mm |
| Weight | 11kg | 14kg | 17Kg | 20kg |
| Ambient temperature | 0℃— +45℃ |
| Ambient humidity | 10%-80% |
