VMC-Output Card Series
2ch HDMI | DP, 4ch HDMI | DVI | SDI | VGA | HDBaseT | Fiber, Ouput Card
- 【VMC-O2H-4K60】 2-Channel HDMI 4K60 Ouput Card
- 【VMC-O2DP-4K60】 2-Channel DP 4K60 Ouput Card
- 【VMC-O4H-4K30】 4-Channel HDMI 4K30 Ouput Card
- 【VMC-O4D】 4-Channel DVI 1080p Ouput Card
- 【VMC-O4S】 4-Channel SDI 1080p Ouput Card
- 【VMC-O4V】 4-Channel VGA 1080p Ouput Card
- 【VMC-O4HB-4K30】 4-Channel HDBaseT 4K30 Ouput Card
- 【VMC-O4F-4K30】 4-Channel Fiber 4K30 Ouput Card
- These professional-grade video matrix output cards deliver seamless, flicker-free switching at multiple resolutions, with hot-swappable capability, power-loss memory retention, and robust ESD shielding, ensuring uninterrupted AV signal control in demanding professional AV setups.
- Description
Description
Technical Spec
VMC-O2H-4K60
| HDMI output | 2×HDMI connector |
| Output maximum resolution | 4096×2160@60Hz |
| Indicator lights | 2×green LED indicators for connection indication |
| Audio | 2×3.5mm audio sockets for audio output |
| Ambient temperature | 0℃— +45℃ |
| Ambient humidity | 10%-80% |
| Power supply | DC 12V |
| Rated Power | 10W |
| Dimensions (L x W x H) | 233 mm *202.8 mm *19.7 mm |
| Weight | 0.35Kg |
VMC-O2DP-4K60
| DP output | 2×DisplayPort(DP) female connector |
| Output maximum resolution | 4096×2160@60Hz |
| Indicator lights | 2×green LED indicators for connection indication |
| Audio | 2×3.5mm audio sockets for audio output |
| Ambient temperature | -10℃— +45℃ |
| Ambient humidity | 10%-80% |
| Power supply | DC 12V |
| Rated power | 15W |
| Dimensions (L x W x H) | 244.8 mm *202.8 mm *19.7 mm |
| Weight | 0.35kg |

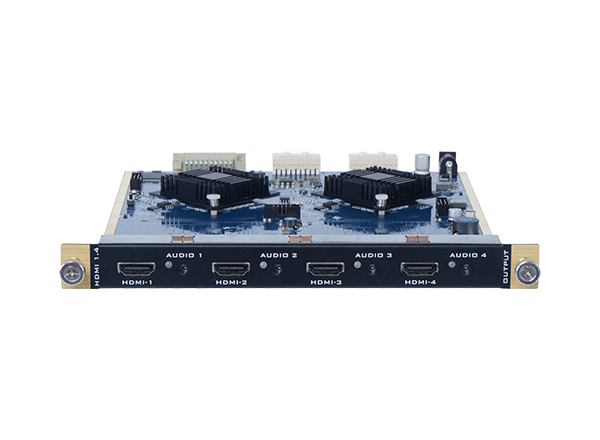

VMC-O4H-4K30
| HDMI output | 4×HDMI socket |
| Output maximum resolution | 4096×2160@30Hz |
| Indicator light | 4×green LED indicators for connection indication |
| Audio | 4×3.5mm audio socket for audio output |
| Ambient temperature | 0℃— +45℃ |
| Ambient humidity | 10%-80% |
| Power supply | DC 12V |
| Rated power | 20W |
| Dimensions (L×W×H) | 233 mm *202.8 mm *19.7 mm |
| Weight | 0.35Kg |
VMC-O4D
| DVI-D output | 4×DVI-D socket |
| Output maximum resolution | 1920×1200@60Hz |
| Ambient temperature | 0℃— +45℃ |
| Ambient humidity | 10%-80% |
| Power supply | DC 12V |
| Rated power | 20W |
| Dimensions (L×W×H) | 233 mm *202.8 mm *19.7 mm |
| Weight | 0.35Kg |
VMC-O4S
| SDI output | 4×BNC sockets for SDI output |
| Output maximum resolution | 1920×1080@60Hz |
| Indicator light | 4×green LED lights for access indication |
| Ambient temperature | 0℃— +45℃ |
| Ambient humidity | 10%-80% |
| Power supply | DC 12V |
| Rated power | 25W |
| Dimensions (L×W×H) | 233 mm *202.8 mm *19.7 mm |
| Weight | 0.35kg |
VMC-O4V
| Analog signal output | 4×VGA connectors |
| Output maximum resolution | 1920×1200@60Hz |
| Audio | 4×3.5mm audio connectors for audio output |
| Ambient temperature | 0℃— +45℃ |
| Ambient humidity | 10%-80% |
| Power supply | DC 12V |
| Rated power | 24W |
| Dimensions (L x W x H) | 233 mm *202.8 mm *19.7 mm |
| Weight | 0.35Kg |
VMC-O4HB-4K30
| HDBaseT Output | RJ45 socket, using Category 6 Ethernet cable, maximum distance 100 meters |
| Output maximum resolution | 4096×2160@30Hz |
| Indicator lights | 8×Green LED lights for connection indication |
| Ambient temperature | -10℃— +45℃ |
| Ambient humidity | 10%-80% |
| Power supply | DC 12V |
| POC power output | DC 12V |
| Rated Power | 28W |
| Dimensions (L*W*H) | 233 mm *202.8 mm *19.7 mm |
| Weight | 0.35kg |
VMC-O4F-4K30
| Fiber Output | 4×LC sockets, support single-mode fiber 20km multi-mode fiber 0.5km |
| Output maximum resolution | 4096×2160 @30Hz |
| Indicator lights | 8×green LED lights for access indication |
| Ambient temperature | -10℃— +45℃ |
| Ambient humidity | 10%-80% |
| Power supply | DC 12V |
| Rated power | 28W |
| Dimensions (L*W*H) | 233 mm *202.8 mm *19.7 mm |
| Weight | 0.35kg |
