Product Details

C9200L-24PXG-2Y-A

$7,290.00

Model: C9200L-24PXG-2Y-A Datasheet – Cisco Catalyst 9200 Series Switches
Detail: C9200L 24-port 8xmGig, 16x1G, 2x25G, PoE+, Network Advantage

PDF Attachment: c9200l-24pxg-2y-a-datasheet

Chat With GNTME LLC

Share this product

Description

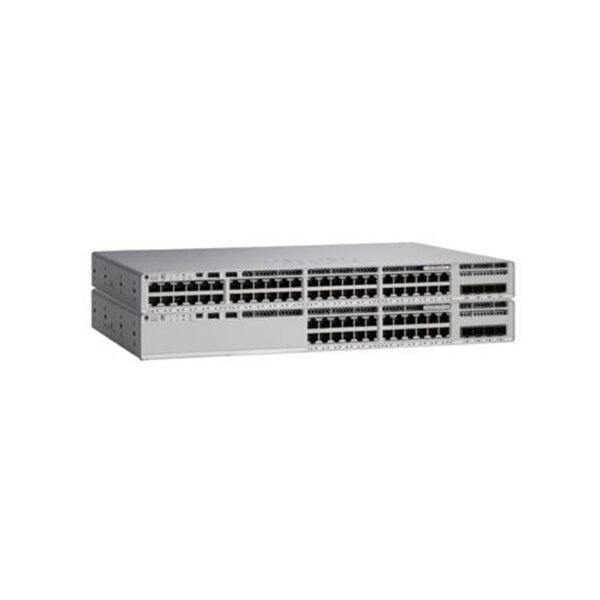

C9200L-24PXG-2Y-A Datasheet – Cisco Catalyst 9200 Series Switches

We at Gear Net Technologies, provide you with the topmost Cisco network Series that you can buy.  We understand that switches are the foundation of most business networks, and how crucial they are for your workplace.

Catalyst 9200 Series switches focus on offering features for the mid-market and simple branch deployments. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments

C9200L-24PXG-2Y-A Datasheet is the C9200L 24-port (8xmGig, 16x1G), 2x25G, PoE+, Network Advantage. With 24 ports full PoE+ capability, power and fan redundancy, stacking bandwidth up to 80 Gbps, 2x 25G fixed uplinks, Layer 3 feature support. Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Other Cisco products like  C9200-24PXG-A Datasheet, C9200-24T-E.



C9200L-24PXG-2Y-A Datasheet Specification

Downlinks total 10/100/1000 or PoE+ copper ports 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G)
Uplink configuration 2x 25G fixed uplinks
Default primary AC power supply PWR-C5-600WAC
Fans Fixed redundant
Software Network Advantage
Chassis Dimensions 1.73 x 17.5 x 13.8 in

4.4 x 44.5 x 35.0 cm

Virtual Networks 1
Stacking bandwidth 80 Gbps
Total number of MAC addresses 16,000
Total number of IPv4 routes (ARP plus learned routes) 11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 routing entries 3,000
IPv6 routing entries 1,500
Multicast routing scale 1,000
QoS scale entries 1,000
ACL scale entries 1,500
Packet buffer per SKU 6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries 16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM 2 GB
Flash 4 GB
VLAN IDs 1024
Total Switched Virtual Interfaces (SVIs) 512
Jumbo frames 9198 bytes
Wireless bandwidth per switch N/A
Switching capacity 292 Gbps
Forwarding rate 229.16 Mpps
Mean time between failures (hours) 374,730
